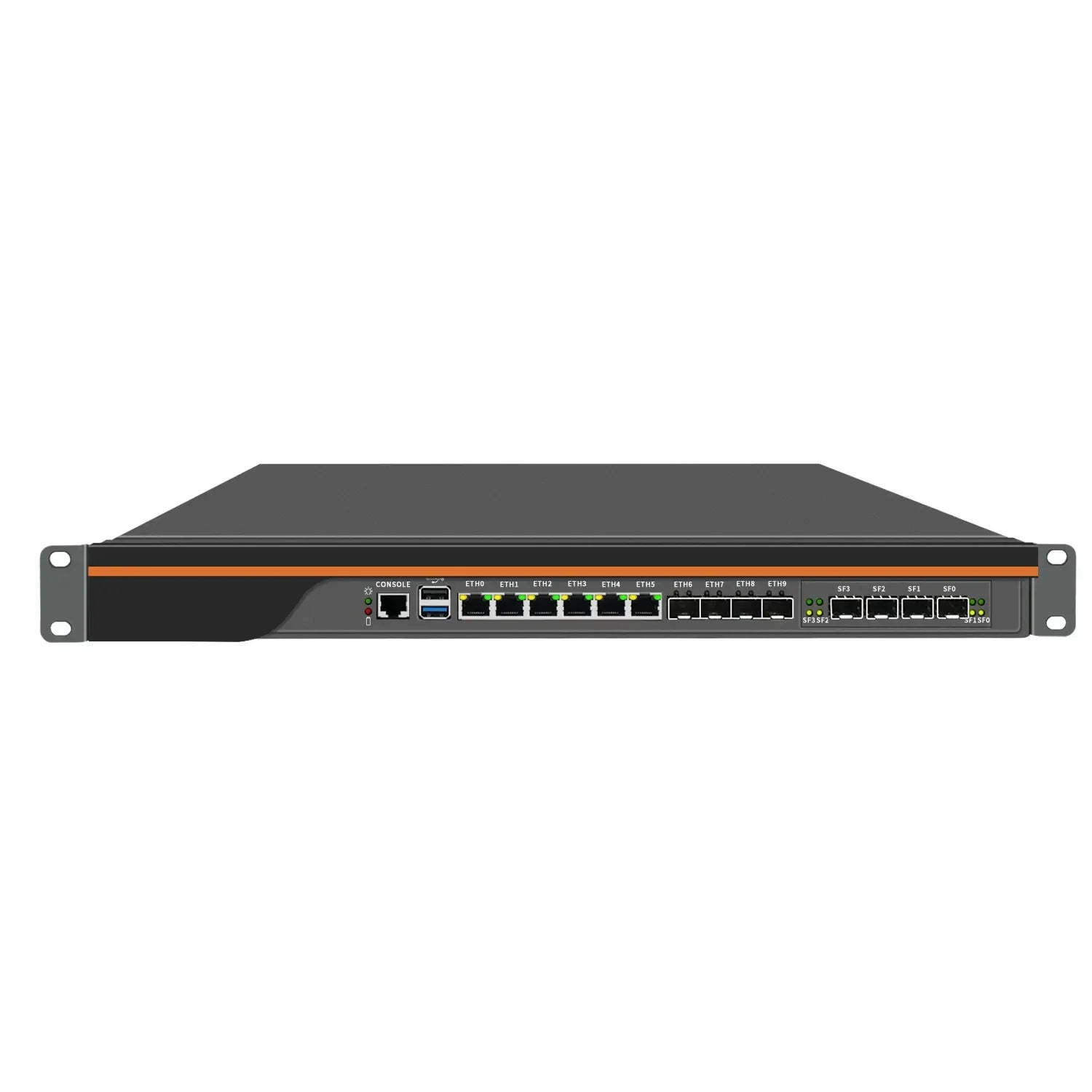

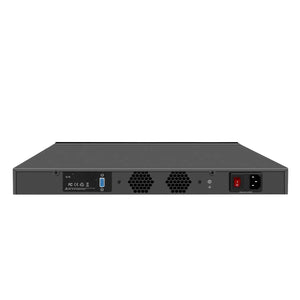

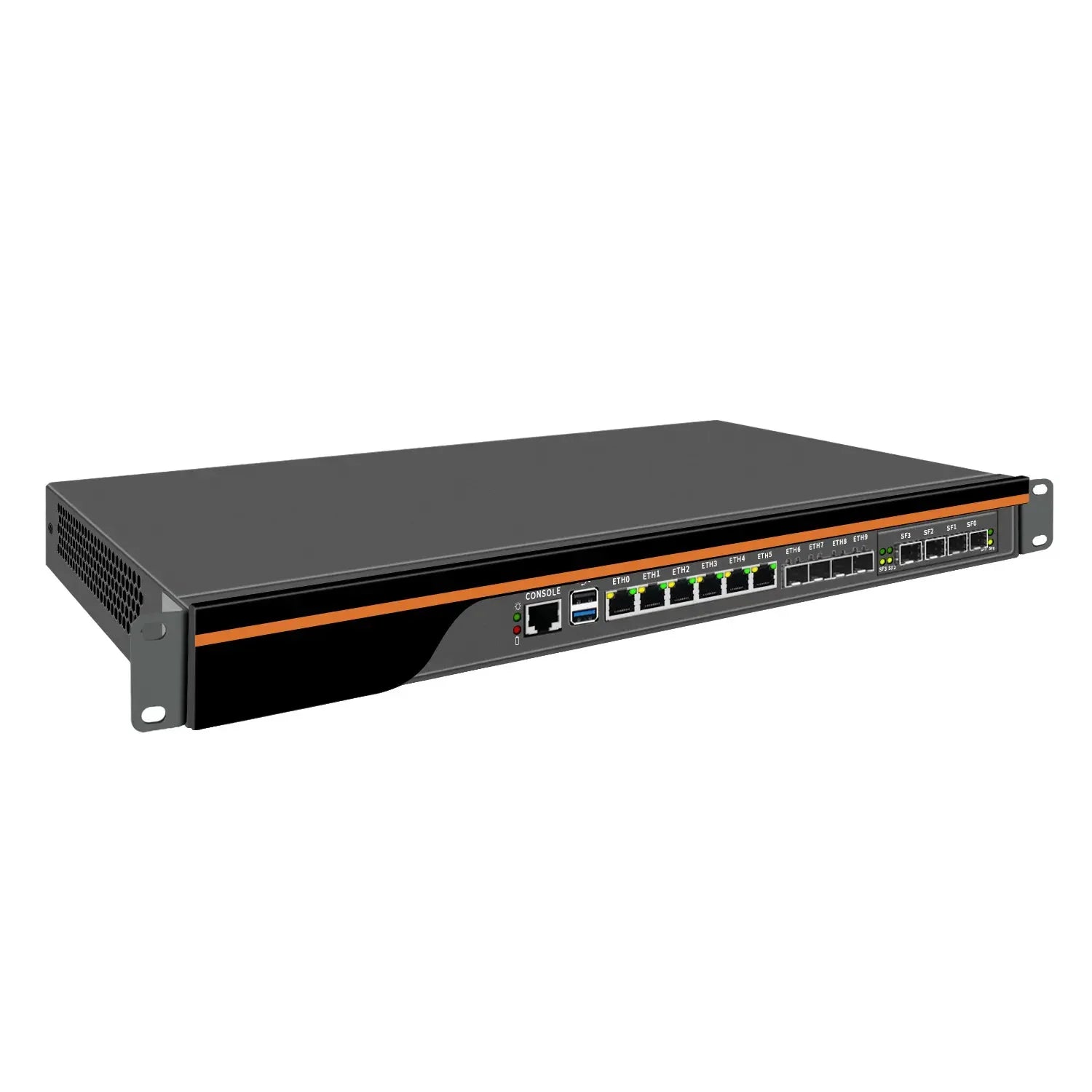

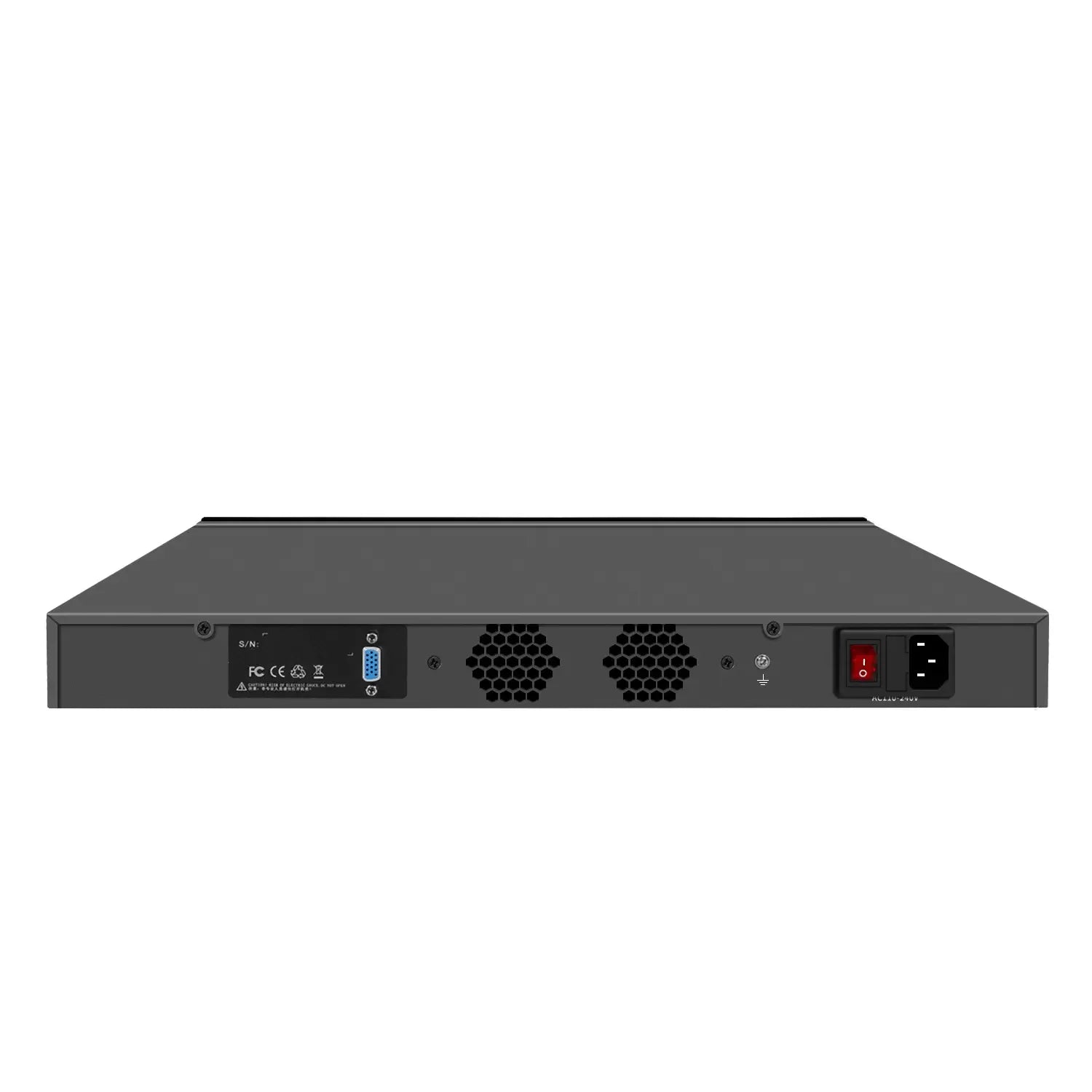

Partaker R13 1U Firewall Appliance Specifications

• Model Number: Partaker R13
• CPU Options:
  • 3rd Gen Intel Core i3-3110M / 3120M Processor (ships one of them)
  • 3rd Gen Intel Core i5-3320M / 3340M Processor (ships one of them)
  • 3rd Gen Intel Core i7-3520M Processor (4M Cache,up to 3.60 GHz)
• AES-NI Support: NO/YES,depends on CPU
• I/O Interface:
  • Console
  • 2x USB
  • 8xLAN
  • 2xSFP+ Optical
  • VGA
  • Power Switch
• Memory: 2xSO-DIMM DDR3/DD3L 1066/1333 MHz,max. 16 GB RAM
• HDD/SSD:
  • 1xmSATA SSD
  • 1x2.5"/3.5" SATA SSD/HDD
• Expansion: Mini PCIe for WiFi/4G (contact Partaker to customize)
• Chassis:
  • 1U 19-inch cabinet, rackable
  • With mounting bracket ears, wall hanging, foot pad
• Network Card:
  • 8xIntel 82574L 10/100/1000 Mbps Ethernet Controller
  • 2xSFP+ Optical Ports (SFP model is 10 Gigabit 82599ES)
• WAN-LAN Throughput:
  • Throughput through 1 Gigabit NIC from LAN to WAN forwarding speed is 1 Gbps
  • Throughput through 10 Gigabit optical from LAN to WAN forwarding speed is around 5 Gbps or more
• Cooling System: The processor uses a ball silent cooling fan to ensure long-time work and stable cooling
• Power: 100W,100V-240V, 50Hz/60Hz
• Size: 430x280x48 mm
• Weight: 6.5 kgs
• Packing List:
  • Firewall appliance
  • Rackable ears
  • Power cord
  • Warranty card
• System Compatibility: Any FreeBSD-based router systems,Linux distributions,or Windows OS supported
• Compatibility with Firewalls: Tested with pfSense,Untangle,OPNsense,and other popular open-source software solutions
