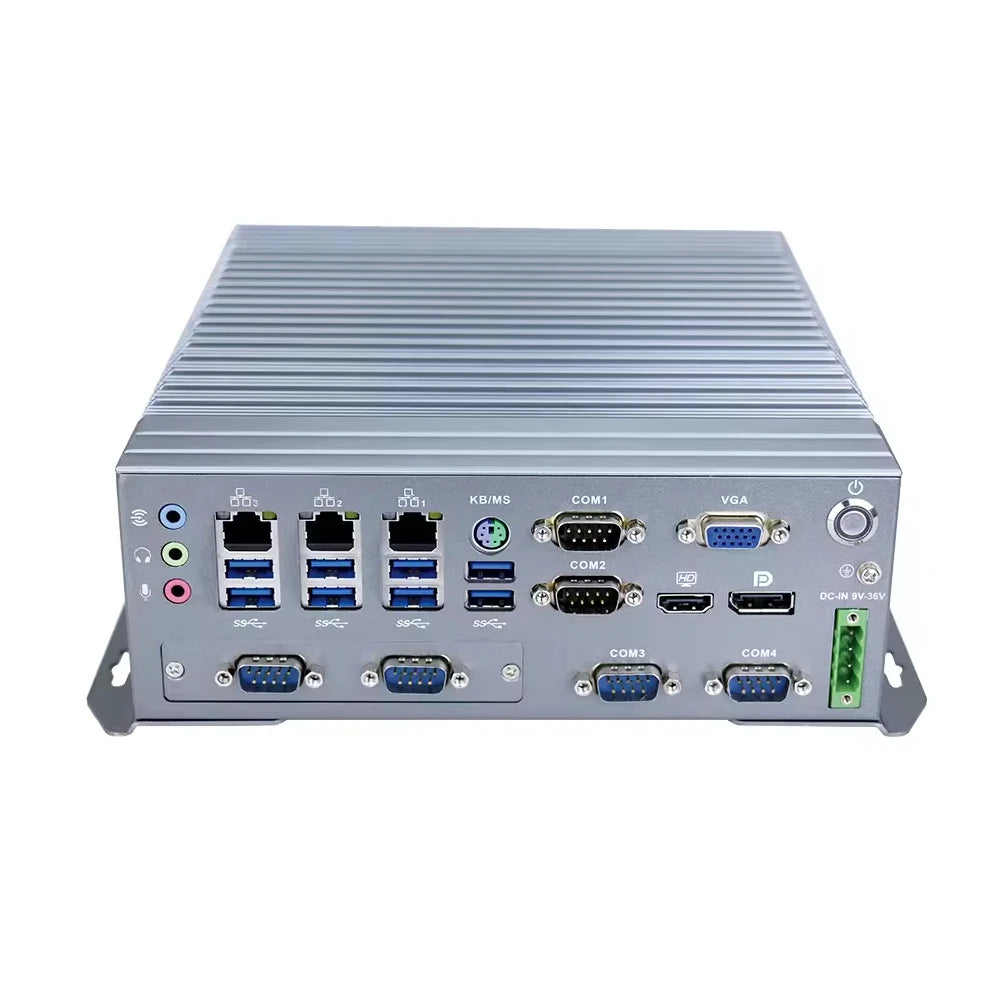

Partaker Fanless Industrial PC: 6th Gen i3/i5/i7, 6xCOM, VGA/HD/DP
Partaker I16 Industrial Grade PC Specifications
System Parameters
- Model: Partaker I16 Industrial Grade PC
-
Processor:
- Intel Core i3 6100T (Dual core four threads, 3.2GHz)
- Intel Core i5 6500T (Quad core four threads, 2.5GHz, Max turbo 3.1GHz)
- Intel Core i7 6700T (Quad core eight threads, 2.8GHz, Max turbo 3.6GHz)
- CPU Structure: Skylake-U / KabyLake-U
- Memory: Support 2*DDR4 1866/2133 SODIMM RAM Slot, Max. Support 32G
- BIOS: AMI EFI BIOS
- Display Chip: Integrated Intel HD Graphics 530
- Display port: 1*VGA, 1*HDMI, 1*DP
- I/O: 8*USB3.0, 3*Intel 1000M LAN, 1*Power Switch, 1*MIC, 2*Speaker, 1*VGA, 1*HDMI, 1*DP, 1*Keyboard or Mouse port 6*COM (COM1, COM2 RS232/422/485 Optional), 1*DC power supply phoenix connector
-
Expansion Slot:
- Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM slot
- Support 1*MINI PCIE Slot (MSATA/3G/4G Optional), Embedded SIM slot
- Optional Ports: 16Bit GPIO, 4*USB2.0 (Standard version doesn't include these ports)
- Network: 2*Intel i211-AT, 1*Intel i219-LM 1000M LAN (Support Vpro Technology)
- Storage port: Support 1*MSATA slot, 2*2.5" SATA HDD (Support RAID0/1)
- Power Supply: DC 9¡«36V wide voltage Input, Support positive pole and negative electrode connect reversely protection
- Certificates: CE, CCC, FCC Class A, ROHS
- Application: Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc.
Structure Parameters
- Color: Titanium gray (Color can be customized)
- Material: High-quality all aluminum, surface anodic oxidation
- Size: 210 * 240 * 83.5 mm (not include wall bracket)
- Weight: 4 kg (not include wall bracket)
Environmental Parameters
- Work Temp: 0¡桫+50¡æ (Commercial HDD), -20¡桫+60¡æ (Industry SSD), Surface air flow
- Work Humidity: 5%¡«95% Non-condensing
