Mechanical

• Material: Aluminum alloy plus magnesium alloy
• Colour: Black

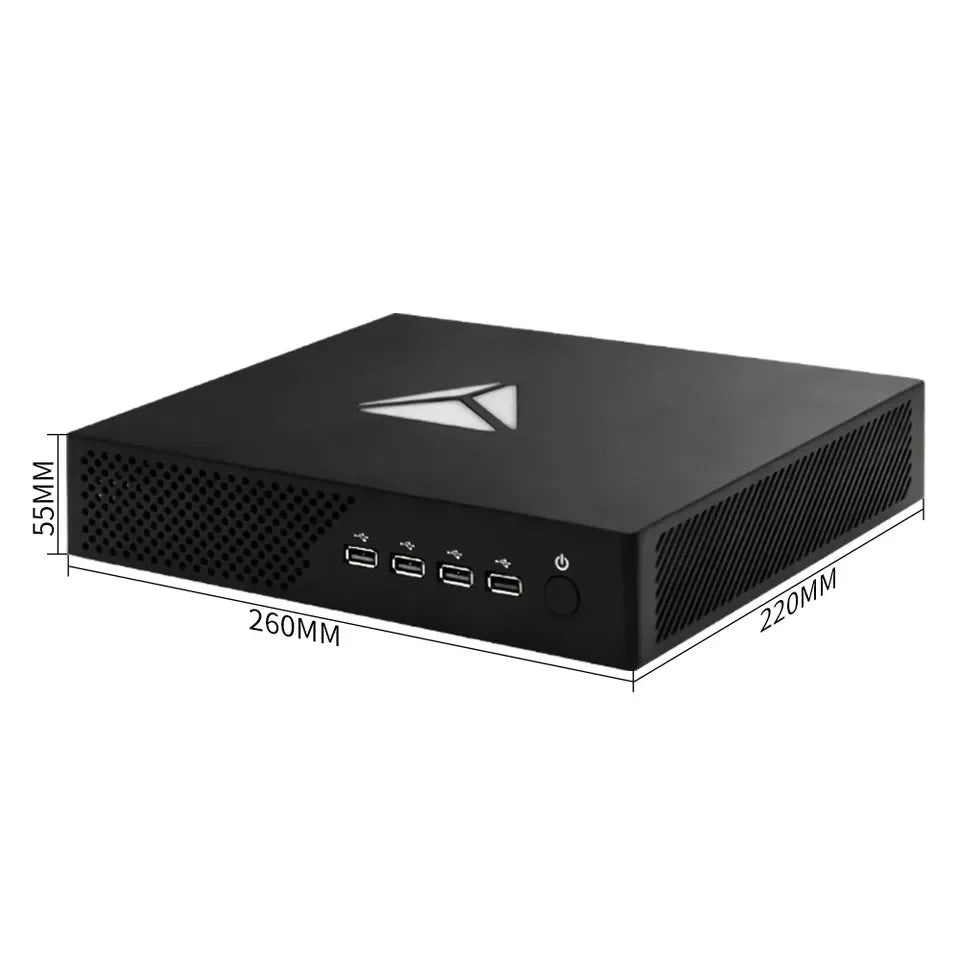

• Size: 260 x 220 x 55mm
• Weight: 4Kgs
• Insallation Method: Desktop type with holding vertical stand

Motherboard

• CPU: Intel Core i3-9100F, 4 Core 4 threads, 3.6GHz up to 4.2GHz, 6MB Cache
  Intel Core i5-9400F, 6 Core 6 threads, 2.9GHz up to 4.1GHz, 9MB Cache
  Intel Core i7-9700F, 8 Core 8 threads, 3.0GHz up to 4.7GHz, 12MB Cache
  Intel Core i9-9900T, 8 Core 16 threads, 2.1GHz up to 4.4GHz, 16MB Cache
• Display Ports: 6HDMI 2.0, support 4K@60Hz display
• Color: Black
• Network Card: RTL8XXX series Gigabit Ethernet
• WiFi and Bluetooth: 2.4G/5G dual band WiFi&Bluetooth4.x
• Memory: 2DDR4 non-ecc SODIMM Ram slots, max 64GB
• Storage: 1M.2 22x80 SATA/NVMe/PCIe3.0x4 SSD+12.5'' SATA
• Dedicated Graphics: AMD Radeon R7 350 4G

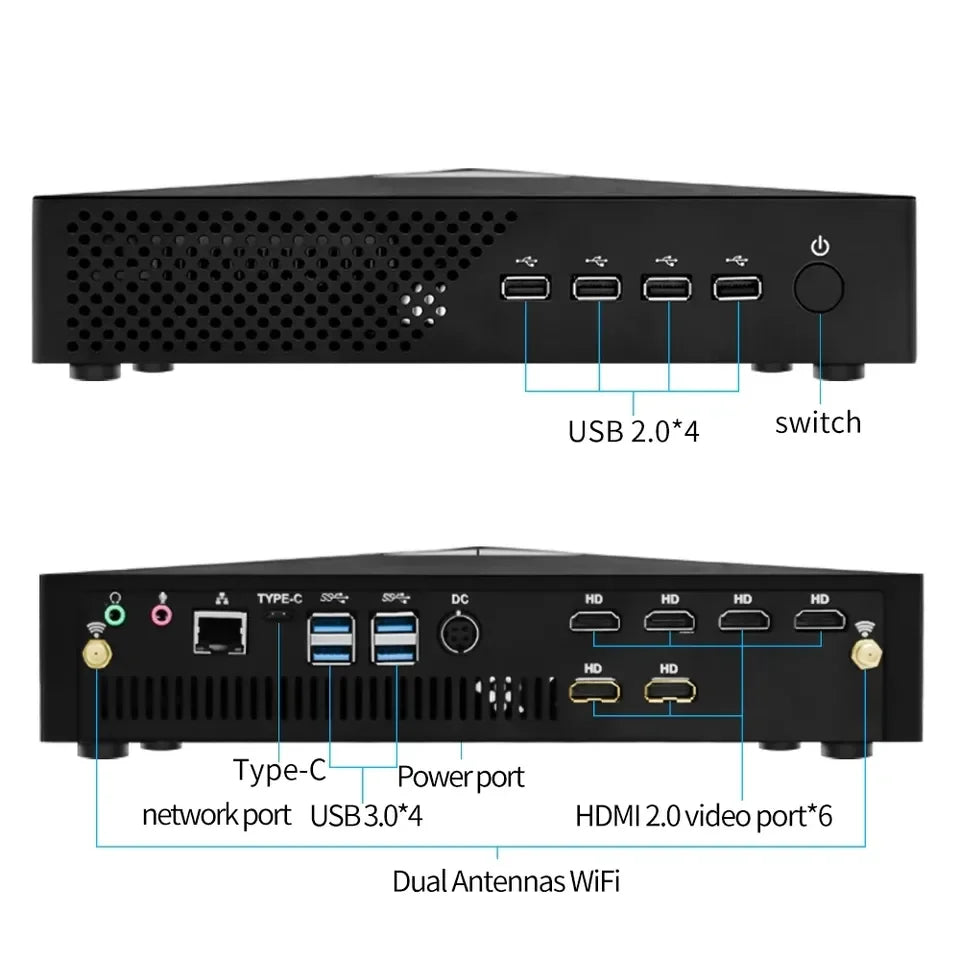

I/O Interfaces

• Front Panel: 4 x USB2.0
  1 x Power SW
• Rear Panel: 1 x SPK
  1 x MIC
  4 x USB3.0
  1 x Type-C
  1 x LAN
  1 x DC IN
  2 x WIFi Antennas Holes
  6 x HDMI2.0

Software Support

• Bios: AMI bios
• System Support: Windows 10/11/sever2012/2016/linux/centos/ubuntu

General

• Cooling Mode: Full cooper turbo cooler
• Power Supply: 19V
• Packing List: B24 mini pc, power supply, power cord, vertical stand, warranty card

Environment

• Operating Temperature: 0C~70C Centigrade (32F~140F)
• Storage Temperature: -20C~80C Centigrade (-68¡ãF~176¡ãF)
• Relative Humidity: 10%~90% (non-condensing)
• Certification: CE FCC ROHS
