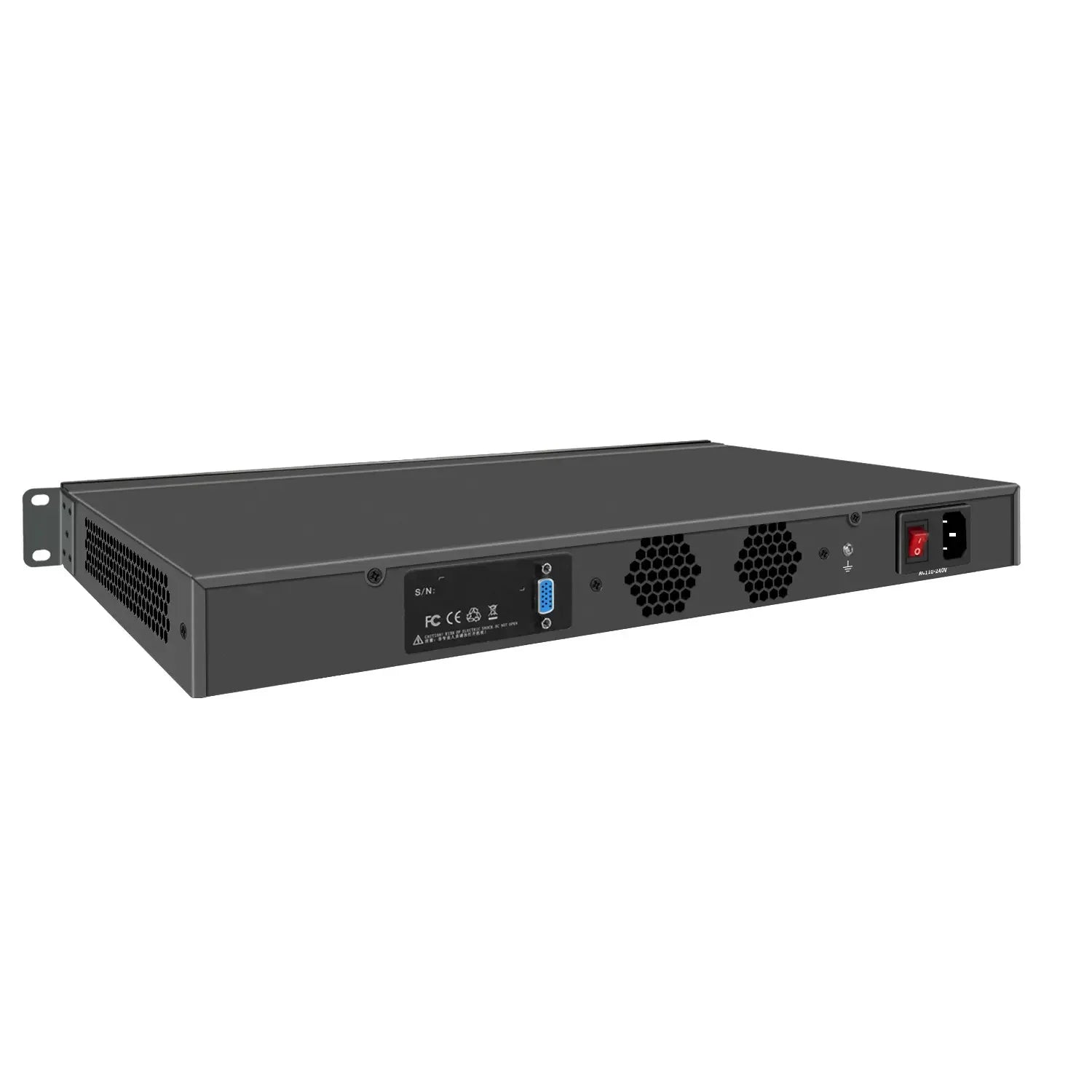

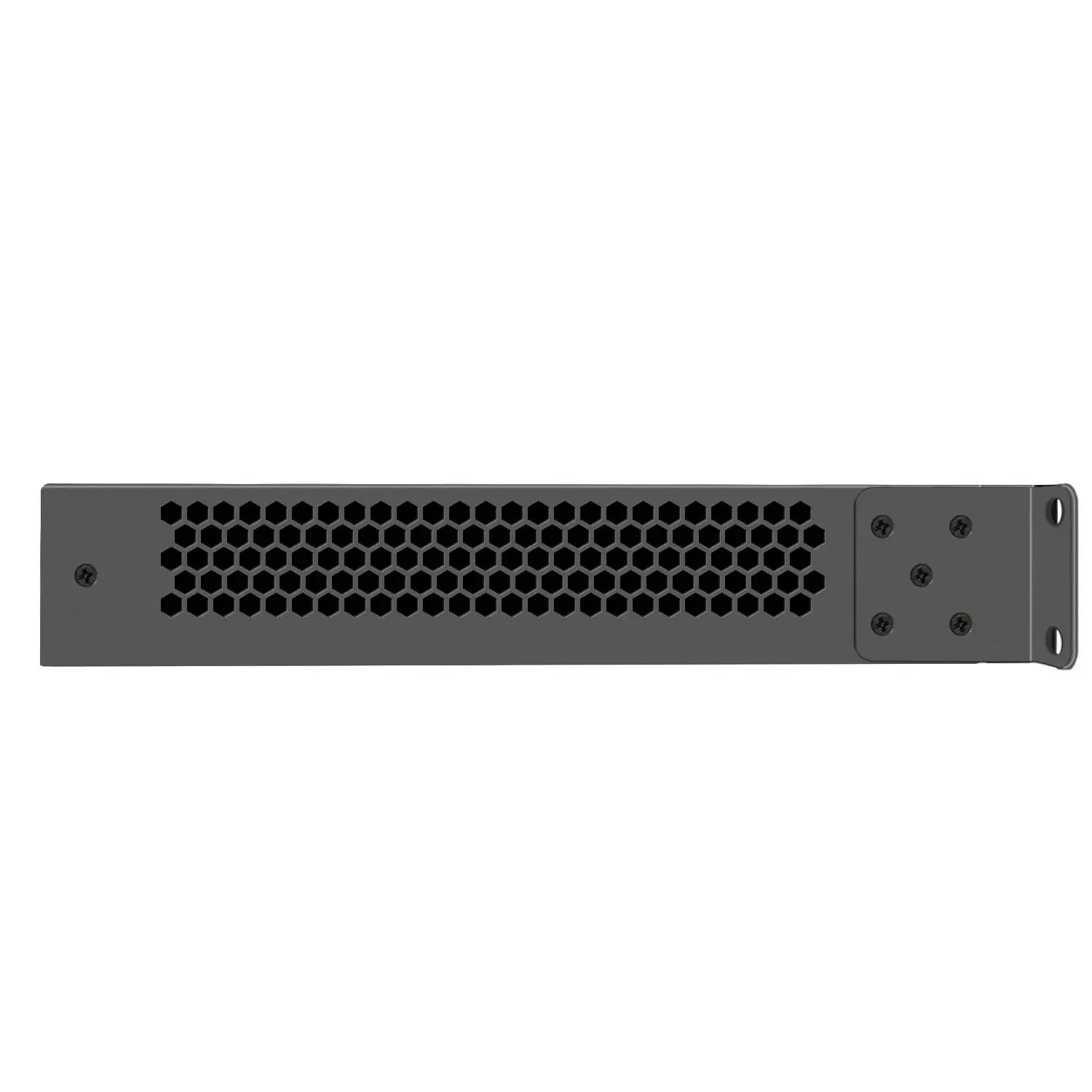

Partaker R13 1U Firewall Appliance Specifications

• Model Number: Partaker R13
• CPU: Intel Atom C3758/C3808/C3958 Processor
• BIOS: AMI BIOS (Legacy or UEFI)
• AES-NI Support: Yes
• Memory: 2 x SO-DIMM DDR4 2400 MT/s,MAX. 64 GB RAM
• Storage:
  • 1 x M.2 2280 NVMe PCIe 3.0 x2 SSD
  • 1 x 2.5" SATA SSD/HDD
• Network Card:
  • 2 x Intel I211 1GbE LAN
  • 4 x Intel I350 1GbE LAN
  • 4 x Intel I225-V 2.5GbE LAN
  • 4 x SFP+ Optical Ports (SFP+ model is X553)
• Display Port: 1 x VGA Port (Aspeed BMC chip)
• I/O Interface:
  • Console
  • USB 2.0
  • USB 3.0
  • 10 x LAN
  • 4 x SFP+ Optical
  • AST2400 VGA
  • Power Switch
  • AC Socket
• Expansion:
  • 1 x Mini PCIe slot for WiFi/4G
  • 1 x M.2 3052 USB 3.0 x1 signal slot for WiFi/4G, with SIM slot
  • 1 x PCIe x8 slot
• Chassis:
  • 1U 19-inch cabinet,rackable
  • With mounting bracket ears, wall hanging, foot pad
• Power: 100-240V 1.0A,12V 6.25A
• Cooling System: The processor uses a ball silent cooling fan to ensure long-time work and stable cooling
• Size: 484X252X48 mm
• Packing List:
  • Firewall appliance
  • Rackable ears
  • Power cord
  • Warranty card
• Function:
  • Supports hardware auto power-on enabled by default
  • Scheduled boot
  • Wake-up on LAN
  • PXE boot
  • Watchdog
• System Compatibility: 5.10.x and above core-based FreeBSD router systems,Linux distributions,or Windows OS supported
• Compatibility: Firewalls tested with pfSense,OPNsense,and other popular open-source software solutions
