Partaker I8 Industrial PC N100
- Material: High-quality all-aluminum chassis
- Color: Metallic gray (custom colors available upon request)

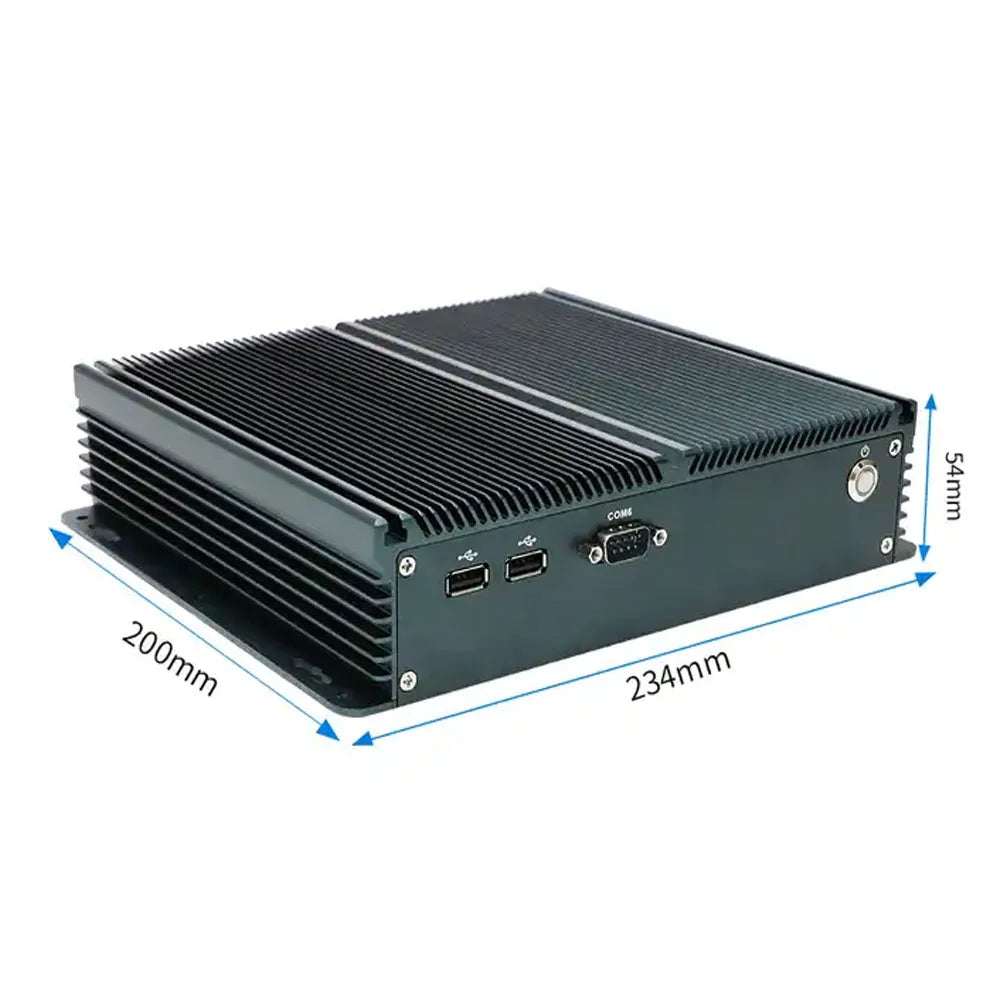

- Dimensions: 234X200X54 mm (LX WX H)
- Weight: 1.98 kg (excluding wall mount)
- Installation Methods: Wall-mounted,desktop,embedded,or with mounting ears
- CPU: Intel N100-Quad-Core/Quad-Threads,Base Frequency up to 3.4 GHz (Turbo),6 MB L3 Cache
-
Display Outputs:
- 2X HDMI ports
- Supports synchronous or asynchronous dual-display output
-
Network Interface:
- 2X RTL8111H Gigabit Ethernet (10/100/1000 Mbps)
-
Memory:
- 1XDDR4-3200 MHz SODIMM slot
- Maximum capacity: 16 GB
-
Storage Support:
- 1XM.2 2280 M-Key slot (supports NVMe or SATA protocol)
- 1X2.5-inch SATA bay for HDD/SSD
-
Expansion Slots:
- 1XM.2 2280 M-Key (NVMe only)
- 1XM.2 3052 B-Key (USB 3.0 signal, supports 4G/5G modules) with external SIM card slot
- 1XM.2 2230 E-Key (supports Wi-Fi and Bluetooth)
-
Scalable Interface (Not included in standard shipment):
- 8-way GPIO (available as optional add-on ¨C consult pre-sales)
-
Advanced Functions:
- Auto power-on after AC restoration
- Scheduled (timed) boot
- Wake-on-LAN
- PXE network boot
- Watchdog timer (0¨C255 levels)
-

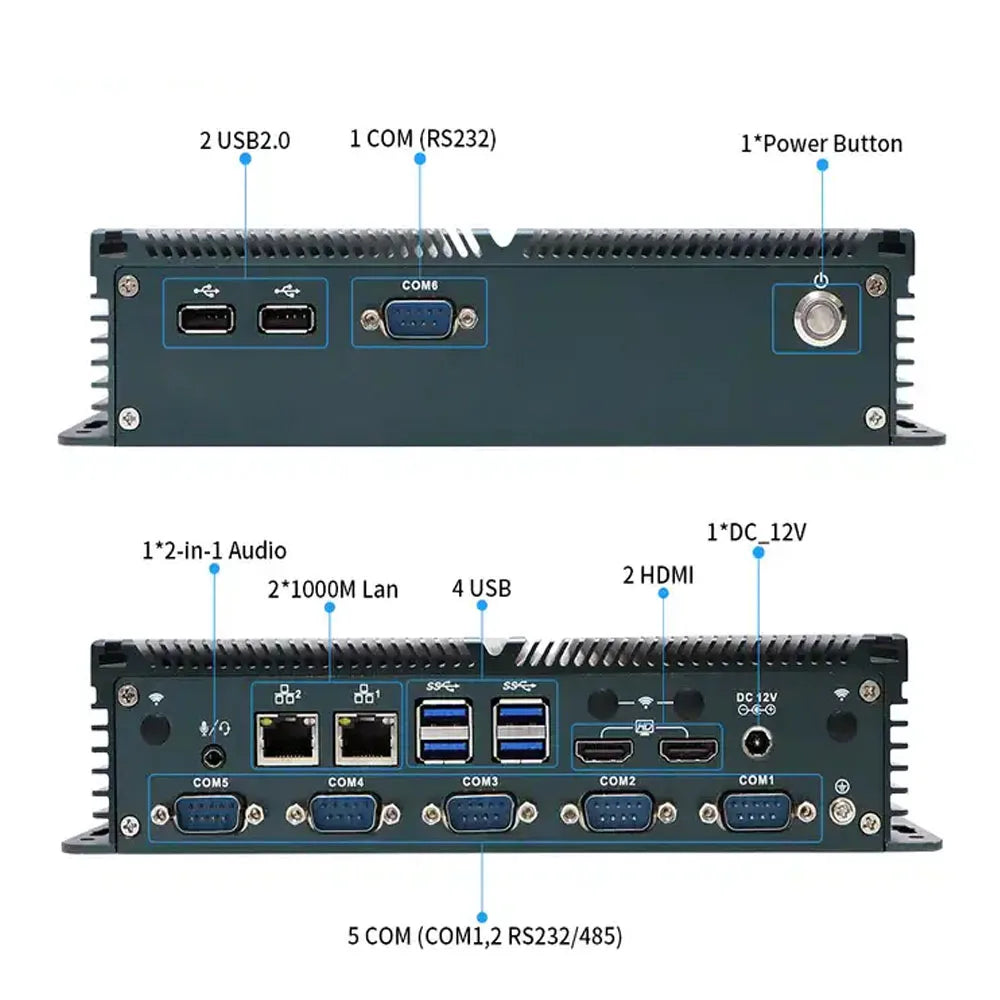

Front Panel I/O:
- 1XPower switch
- 2XUSB 2.0 ports
- 1XCOM port (RS232)
-
Rear Panel I/O:
- 1X2-in-1 audio jack (mic + headphone)
- 2XGigabit LAN (RTL8111H)
- 2XHDMI
- 3XUSB 3.0 ports
- 1XUSB 2.0 port
- BIOS: AMI EFI BIOS
-
Operating System Support:
- Windows (10/11 recommended)
- Linux (various distributions)
- Cooling System: Fanless design
-
Power Supply:
- DC 12V input
- Includes external power adapter and power cord
-
Packing List:
- 1XIndustrial Mini PC
- 1XPower supply adapter
- 1XPower cord
- 2XWi-Fi antennas
- 1XWarranty card
-
Operating Temperature:
- 0C to +50C(with commercial-grade HDD)
- -20C to +60C (with industrial-grade SSD, with surface airflow)
- Operating Humidity: 5% ¨C 95% RH (non-condensing)
- Certifications: CE, FCC, RoHS compliant
-
Typical Applications:
- Industrial automation
- Medical care systems
- Logistics and transportation
- Warehouse management
- E-education & digital signage
- Embedded computing in harsh environments
