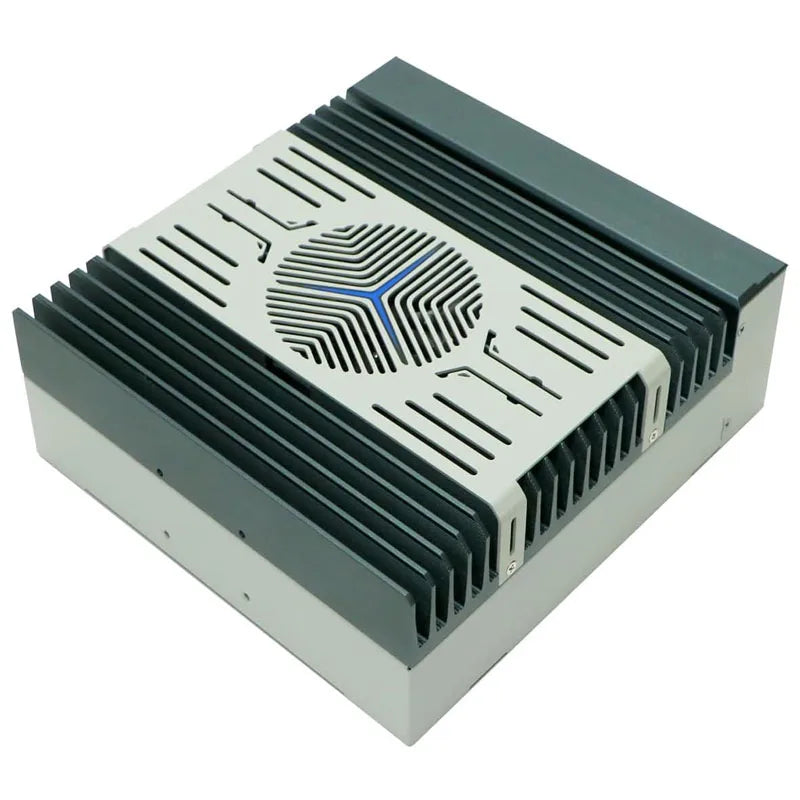

Partaker I14 Fanless Mini Industrial PC i5
- Material: High-quality pure aluminum Mini-ITX case
- Color: Black (custom colors available upon request)
- Dimensions: 214x 200x54 mm(WxDxH)
- Weight: 2.5 kg
- Installation Methods: Wall-mounted, desktop, embedded, or with mounting ears
- CPU: Intel Core i5-4200U/i5-4300U Dual-Core,1.9 GHz£¨Turbo up to 2.6 GHz)
- Mainboard: Mini-ITX form factor, 170x170 mm
-
Display Ports:
- 1XVGA
- 1X HDMI
-
Network Interface:
- 2XIntel i211-AT Gigabit Ethernet(10/100/1000 Mbps)
-
Memory:
- 1X DDR3L 1333/1600 MHz SODIMM slot
- Maximum capacity: 8 GB
-
Storage Support:
- 1XmSATA slot
- 1X2.5 SATA SSD/HDD bay
- Optional: Dual 2.5 HDD configuration (2x2.5")
-
Expansion Slots:
- 1X Mini-PCIe (supports Wi-Fi / 3G / 4G modules, optional)
- 1XMini-PCIe (dedicated for mSATA)
- Built-in SIM card slot for cellular connectivity
-
Optional Ports (Not included in standard version):
- GPIO
- LPT (Parallel) port
-
Front Panel I/O:
- 4XUSB 2.0
- 1XCOM port
- 1XPower switch
-
Rear Panel I/O:
- 2XUSB 3.0
- 1XDC 12V power input
- 2XRJ45 LAN (Intel i211-AT)
- 1XVGA
- 1XHDMI
- 6XCOM ports (COM3 supports RS232/RS422/RS485 ¨C configurable)
- 1XMic input
- 1XLine-out audio
- BIOS: AMI 64 Mbit SMT Flash ROM
-
Operating System Support:
- Windows 7/8/10
- Linux (various distributions)
- Cooling System: Fanless design
-
Power Supply:
- DC 12V input
- Includes external power adapter and power cable
-
Packing List:
- 1XMini PC
- 1XPower adapter
- 1XPower cable
-
Operating Conditions:
- Temperature: -10C to +60C
- Humidity: 5%-95% RH (non-condensing)
- Certifications: CE,FCC, RoHS compliant
-
Typical Applications:
- Industrial automation
- ATM & POS systems
- CNC machines
- Digital signage&kiosks
- Energy&power monitoring
- Telecommunications
- Networking appliances
- Gaming terminals
- Transportation&logistics
