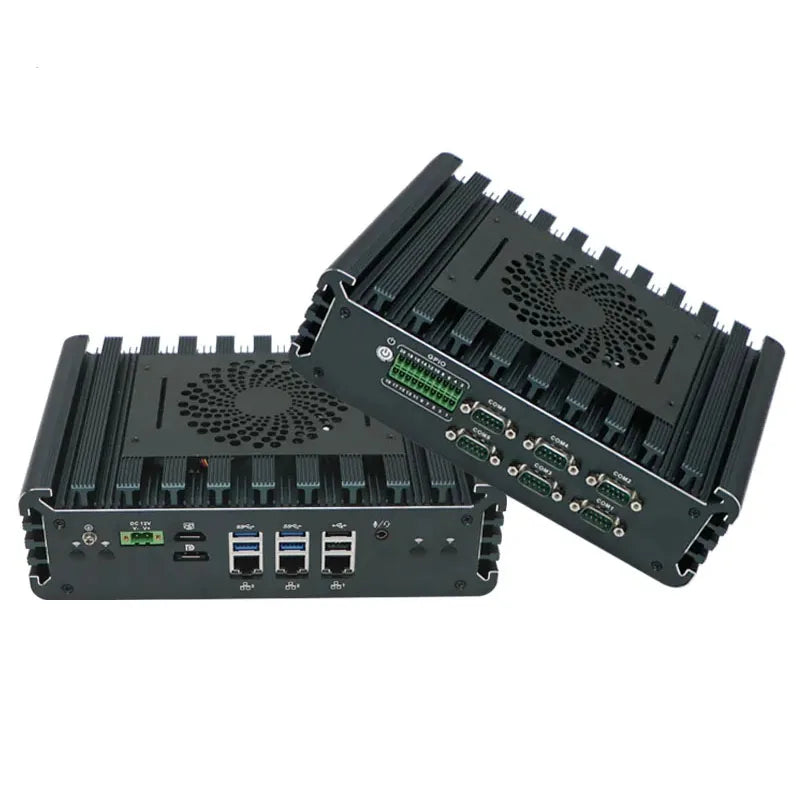

Partaker I12 Intel 11th Gen Industrial PC
- Product Name: Industrial Mini PC (11th Gen Intel Core)
- Material: High-quality all-aluminum chassis with hard anodized surface
- Color: Black (custom colors available upon request)
- Dimensions: 230x152x68 mm (WxDxH)
- Weight: 2.5 kg
-
Installation Methods:
- Wall-mounted
- Embedded
- Desktop placement
- With mounting ears for secure fixation
-
CPU Options (Onboard):
- Intel Core i3-1115G4 ¨C Dual-Core/4 Threads, 3.0 GHz (Turbo up to 4.1 GHz)
- Intel Core i5-1135G7 ¨C Quad-Core/8 Threads, 2.4 GHz (Turbo up to 4.2 GHz, 8 MB cache)
- Intel Core i7-1165G7 ¨C Quad-Core/8 Threads, 2.8 GHz (Turbo up to 4.7 GHz, 12 MB cache)
-
Integrated Graphics:
- Intel UHD Graphics (i3)
- Intel Iris Xe Graphics (i5/i7)
-
Display Outputs:
- 1xHDMI (supports Full HD)
- 1xDisplayPort (DP)
- Supports synchronous or asynchronous dual-display output
-
Network Interface:
- 3xIntel I225-V 2.5 Gigabit Ethernet ports (RJ45)
-
Memory:
- 1xDDR4-3200 MHz SODIMM slot
- Maximum capacity: 32 GB
-
Storage Support:
- 1xM.2 M-Key 2280 slot (supports NVMe PCIe SSD)
- 1x2.5-inch SATA bay for HDD or SSD
-
Expansion Slots & Wireless:
- 1xM.2 M-Key 2280 (NVMe)
- 1xMini-PCIe slot (supports Wi-Fi / Bluetooth)
- 1xM.2 B-Key 3042/3052 slot (supports 4G/LTE modules) ¨C optional, not included by default
- Embedded SIM card slot for cellular connectivity
-
Optional Expansion (Not in Standard Version):
- 2xAdditional USB 2.0 ports
-

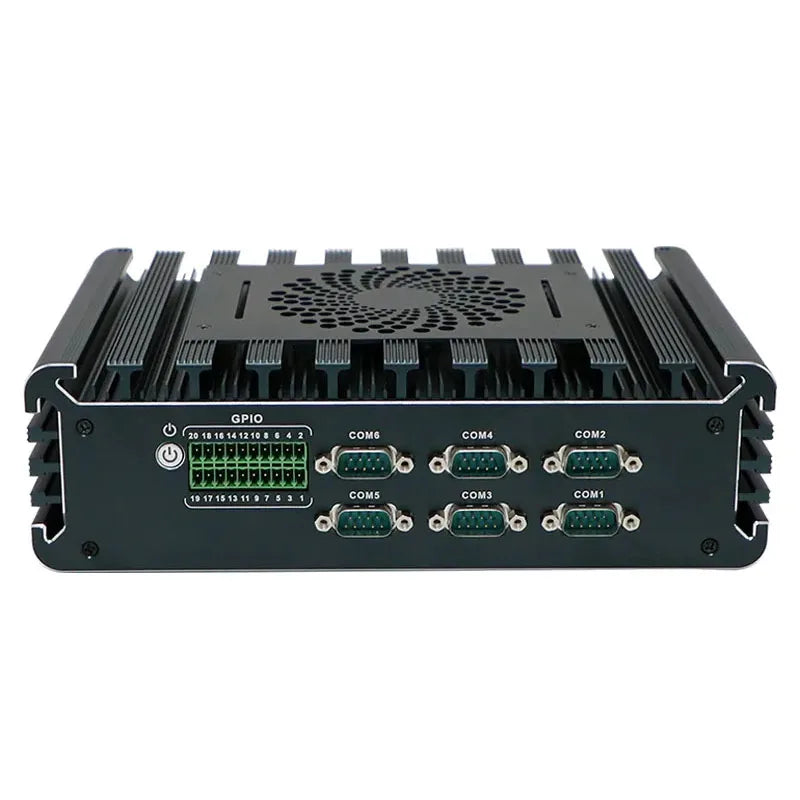

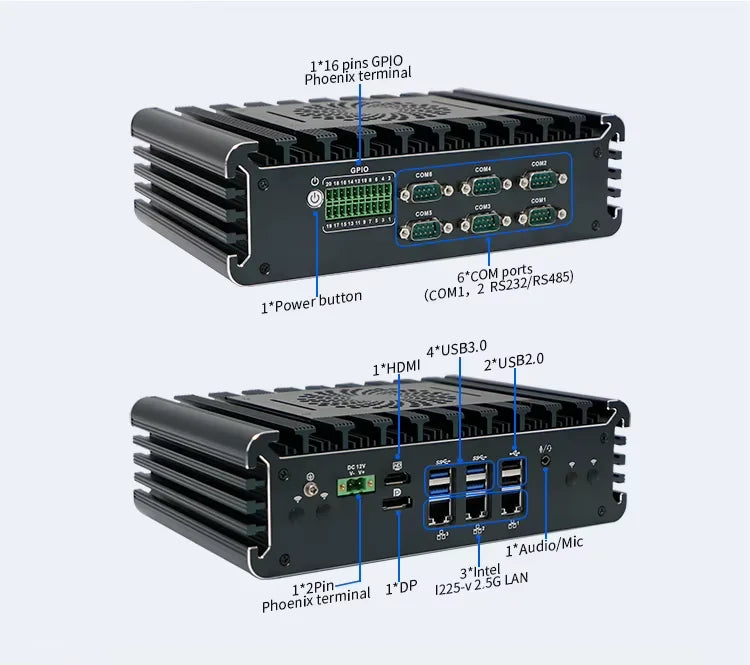

Front Panel I/O:
- 1xPower button
- 1x16-pin GPIO (Phoenix terminal)
- 6xCOM ports (COM1 & COM2 configurable as RS232/RS485)
-

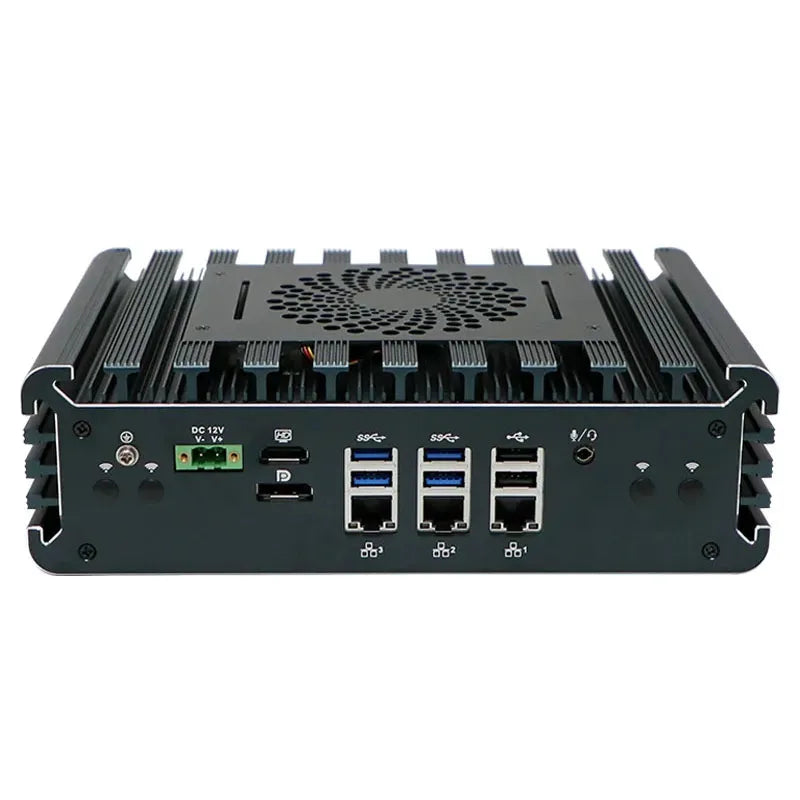

Rear Panel I/O:
- 1xHDMI
- 1xDisplayPort
- 4xUSB 3.0
- 2xUSB 2.0
- 3xIntel I225-V 2.5G LAN (RJ45)
- 1xAudio output & Microphone input (combo jack)
- 1x2-pin Phoenix power terminal
- BIOS: AMI EFI BIOS
-
Operating System Support:
- Windows 7/8/10/11
- Linux (various distributions)
-
Advanced Functions:
- Auto power-on after AC restoration
- Scheduled (timed) power-on
- Wake-on-LAN
- PXE network boot
- Watchdog timer (0¨C255 levels)
