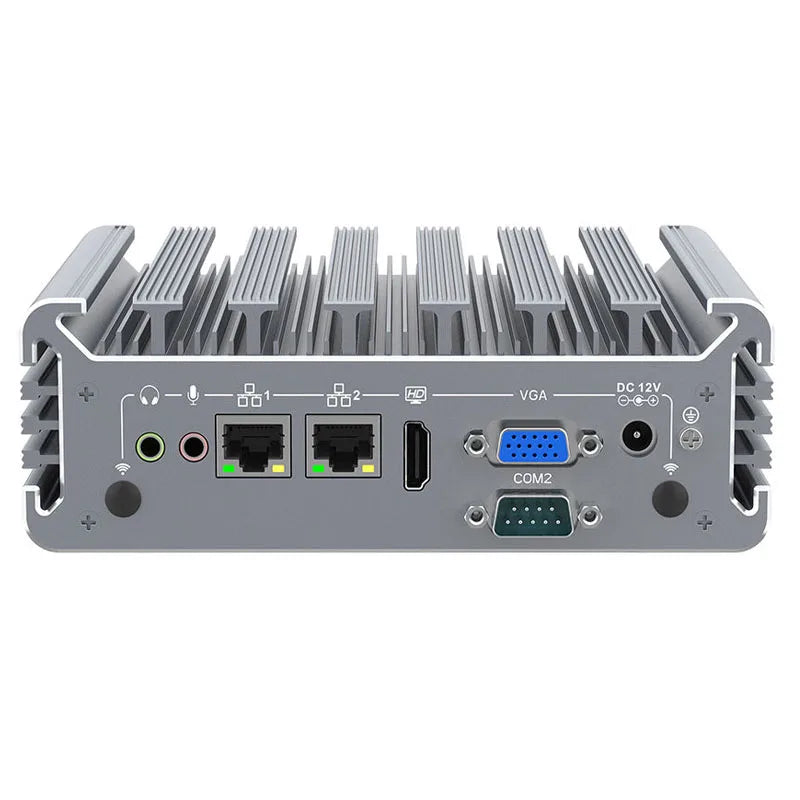

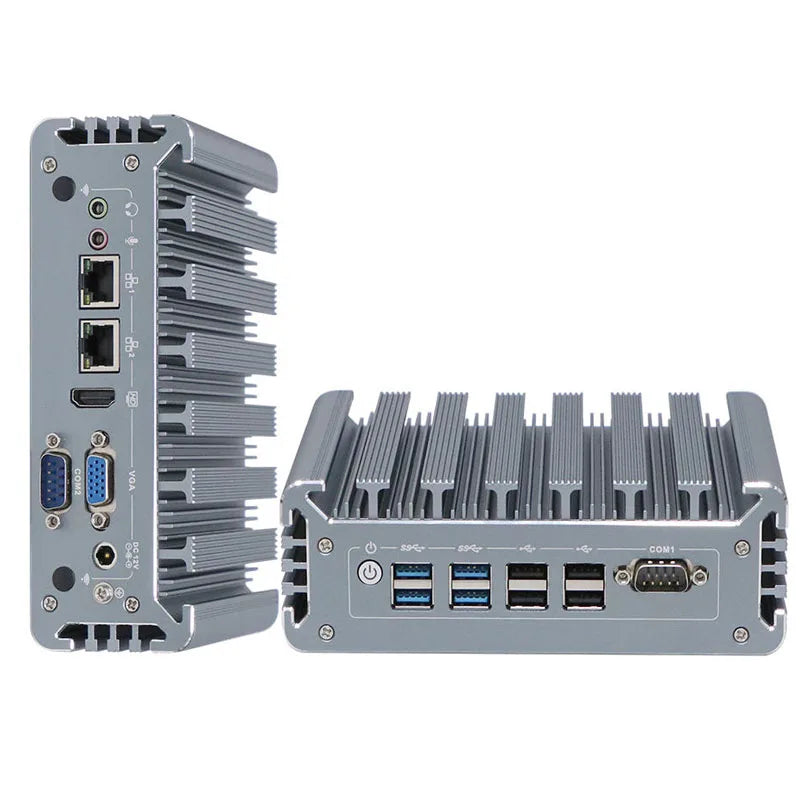

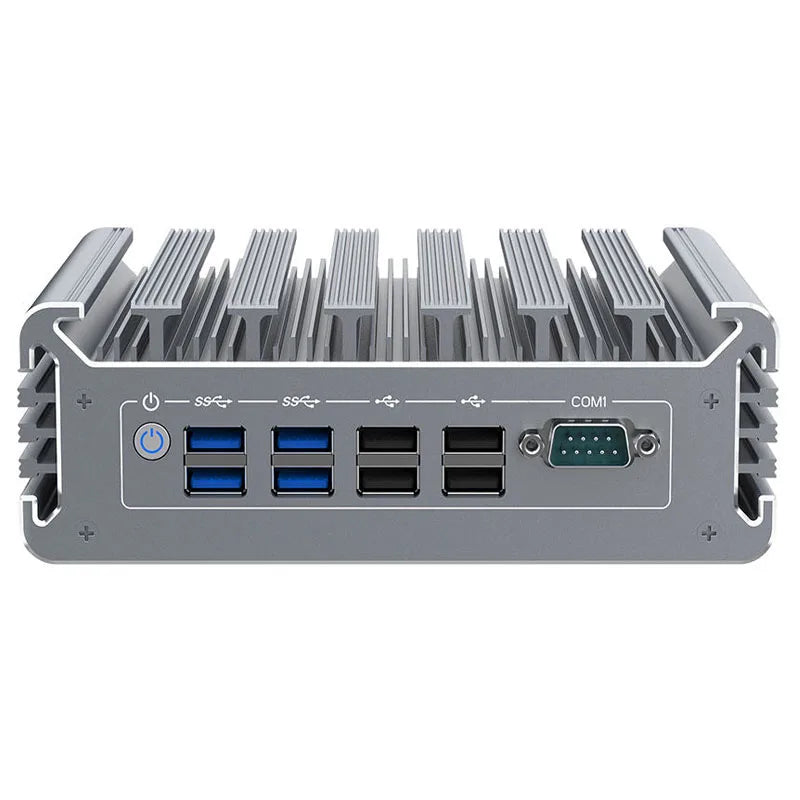

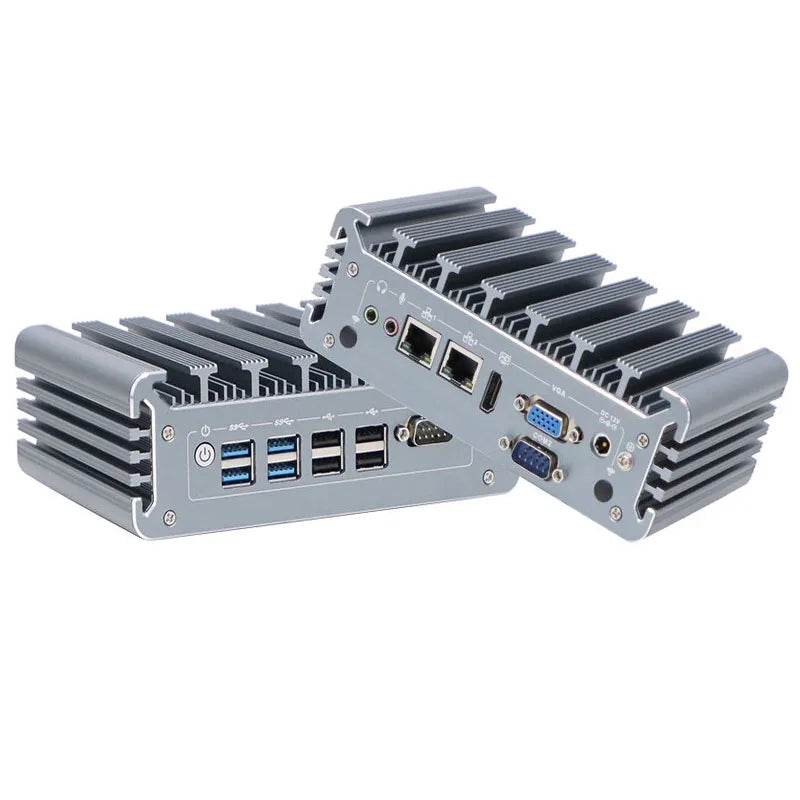

Partaker I24 Industrial PC Specifications

• Model: Partaker I24
• Color: Metallic Gray (customizable)
• Material: High-quality all aluminum,surface hard anodized
• Processor:
  • Intel Core i5-7287U (dual-core 4 threads, base frequency 3.3 GHz,up to 3.7 GHz)
  • Intel Core i5-8350U (4 cores 8 threads, base frequency 1.7 GHz,up to 3.6 GHz)
  • Intel Core i7-10610U (4 cores 8 threads, base frequency 1.8 GHz,up to 4.9 GHz)
• Memory: DDR4 2133/2400/2666 SODIMM memory slots:
  • i5-7287U&i5-8350U: 1*DDR4 Ram,Max 32G;
  • i7-10610U:2*DDR4 Ram,Max 64G.
• BIOS: AMI EFI BIOS
• Display Chip: Intel Iris Plus Graphics 650/Intel UHD Graphics 620/Intel UHD Graphics
• I/O:
  • 1*power button,4*USB3.0,4*USB2.0,1*COM RS232,1*DC,1*VGA,1*HDMI,2*RJ45 network ports,1*COM RS232,1*Mic,1*Line Out.
• Expansion Slot:
  • 1*M.2 2280 M-Key slot (supports SATA & NVME, PCIE3.0X4);
  • 1*MINI PCIE slot (PCIe & USB2.0 protocol, supports 4G/WIFI),built-in Nano-SIM card slot.
• Storage: 1*M.2 2280 slot,1*2.5-inch HDD/SSD
• Network: 2* Realtek 8111H 10/100/1000M Ethernet
• Power Supply: DC 12V
• Other Functions: Auto power on,Timing boot,Wake on LAN,PXE boot,TPM2.0 security encryption
• Work Temperature: 0C- +45C,surface air flow
• Work Humidity: 5%-95% non-condensing
• Dimension: 166 * 127 * 55.5 mm
• Weight: 1.19 kg
• Application: Industrial automation,medical,logistics and transportation,warehousing,electronic education etc.
