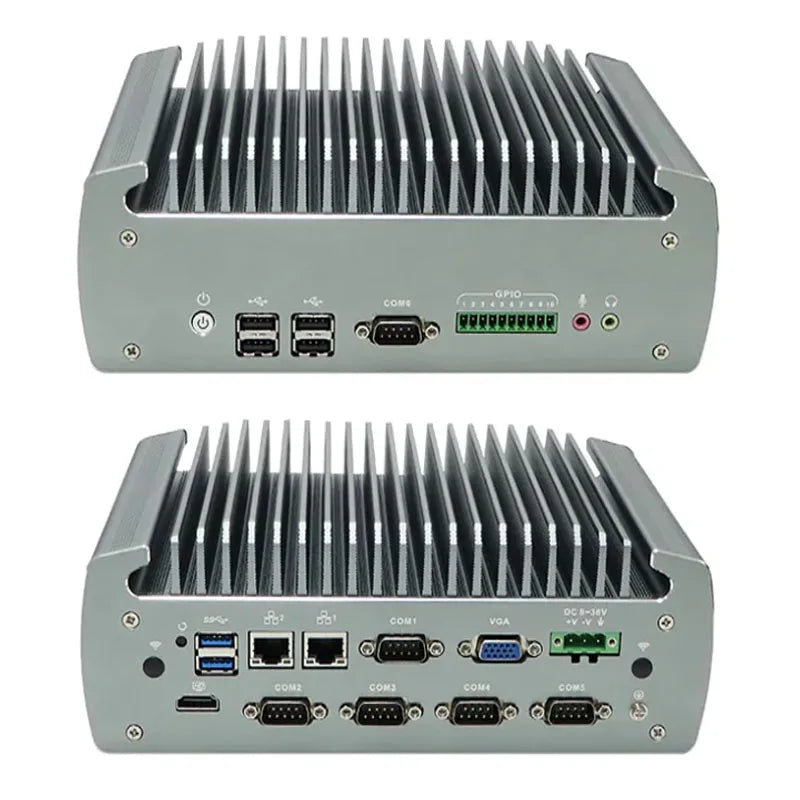

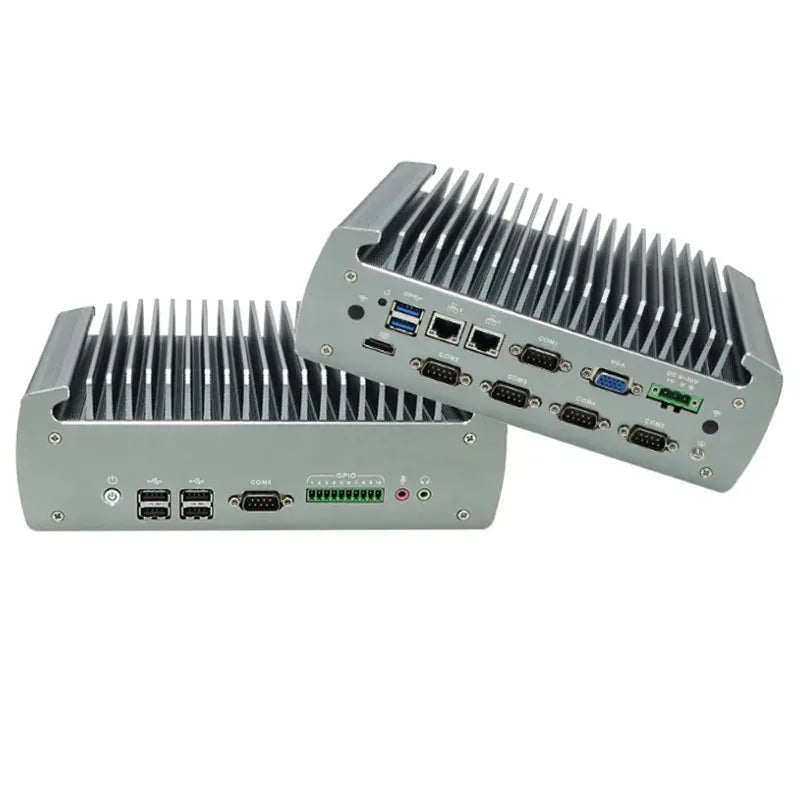

Partaker I17 Industrial Mini PCs with Dual LAN
-
CPU Options (Generation & Model Dependent):
- Optional Intel Core i3 / i5 / i7 processors from:
- ? 4th Gen (Haswell)
- ? 6th Gen (Skylake)
- ? 7th Gen (Kaby Lake)
- ? 8th Gen (Coffee Lake)
- ? 10th Gen (Comet Lake)
- ? 12th Gen (Alder Lake)
- ? 13th Gen (Raptor Lake)
-
Memory Support (by CPU Generation):
- 4th Gen: 1XDDR3L SODIMM, up to 8 GB
- 6th/7th/8th Gen: 1XDDR4 SODIMM, up to 16 GB
- 8th/10th Gen: 2XDDR4 SODIMM, up to 32 GB
- 12th/13th Gen: 1XDDR5 SODIMM, up to 64 GB
-
Storage Options:
- 4th Gen: 1XmSATA slot
-
6th/7th/8th/10th/12th/13th Gen:
- 1X M.2 2280 slot (supports SATA and NVMe protocols)
- 1X 2.5-inch SATA bay for HDD or SSD
- Graphics: Integrated Intel UHD/HD Graphics (depends on selected CPU generation)
-
Network Interface:
- 2XGigabit Ethernet (RJ45) ¨C Realtek RTL8111H
- Supports Wake-on-LAN and PXE boot
-
USB Ports:
- 4XUSB 3.0
- 4XUSB 2.0
-
Serial Ports (COM):
- 2XDB9 RS232 ports
-
Display Outputs:
- Standard: 2XHDMI + 1XVGA
- Alternative configuration: 1XHDMI + 1XVGA (both options available ¨C please specify at order)
-
Audio:
- 1XHeadphone/Earphone output
- 1X Microphone input
-
Wireless Expansion:
- 1XMini-PCIe slot for Wi-Fi/Bluetooth/4G LTE modules
- Note: Wi-Fi module pre-installed; 4G LTE module not included by default ¨C contact us to add.
-
Operating System Support:
- Windows 7/10/11
- Linux (various distributions)
-
Advanced Functions:
- Wake-on-LAN
- PXE network boot
- Watchdog timer
- Auto power-on after AC power restoration
-
Power Supply:
- DC 12V @ 5A input
- Dimensions: 193.9X127X57.2 mm (WX D X H)
- Net Weight: 1.0 kg
- Operating Temperature: -20C to +60C
- Storage Temperature: -30C to +70C
- Operating Humidity: 10% ¨C 90% @ 30C (non-condensing)
- Cooling Method: Fanless passive cooling
-
Packing List:
- 1X Mini PC
- 1XAC power adapter
- 1X Power cord
- 1X User guide
- Important Note: The unit comes with a Wi-Fi module pre-installed. The 4G LTE module is not included by default. Please contact us if you require 4G/LTE functionality.
