Partaker I12 Industrial IPC Specifications

• Model: Partaker I12 Industrial IPC
• Processor:
  • Intel Core i3 1115G4 (Dual core 4 threads, 3.0 GHz, Turbo 4.1GHz)
  • Intel Core i5 1135G7 (Quad core 8 threads, 2.4 GHz, Turbo 4.2 GHz, 8MB cache)
  • Intel Core i7 1165G7 (Quad core 8 threads, 2.8 GHz, Turbo 4.7 GHz, 12MB cache)
• Memory: Support 1*DDR4 3200MHz SODIMM memory slot, Max 32GB
• BIOS: AMI EFI BIOS
• Display Chip: Intel HD Graphics / Intel Iris(R) Xe Graphics
• Display port: 1*HDMI FHD Display port, 1*DP (Support Synchronous or asynchronous display)
• Storage: 1* M.2 slot (support NVME), 1*2.5 inch HDD
• Expansion:
  • 1*M.2 M-Key 2280 slot (support NVME)
  • 1*MINI PCIE slot (support WIFI/BT)
  • 1*M.2 B-key slot 3042/3052 (support 4G), with SIM card slot
• Expansion Ports: Can be expand (The standard is without it): 2*USB2.0
• Other Function: Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0-255 level)

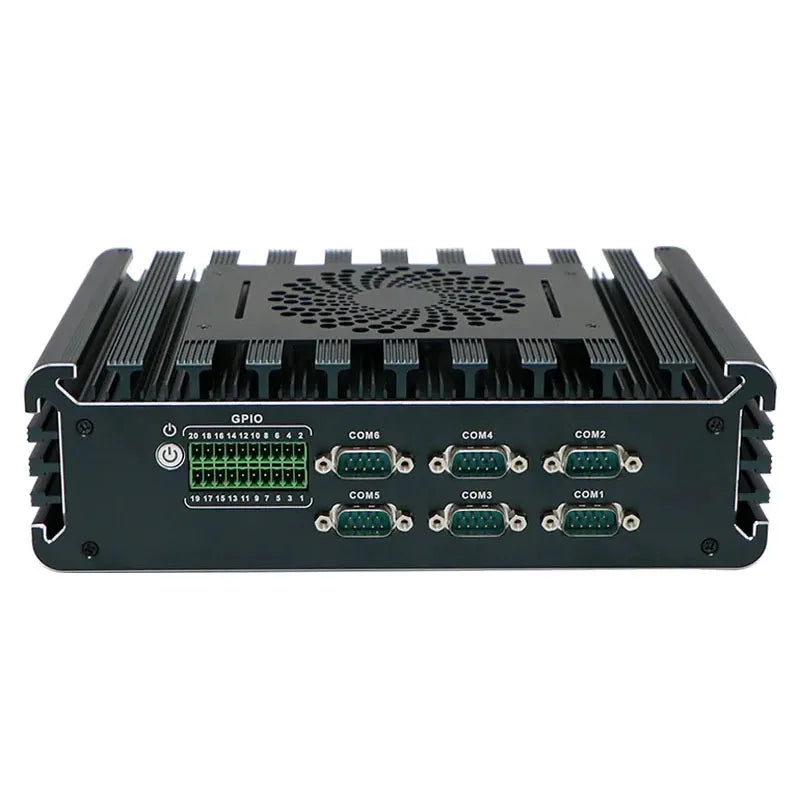

• I/O:
  • 1*Power button

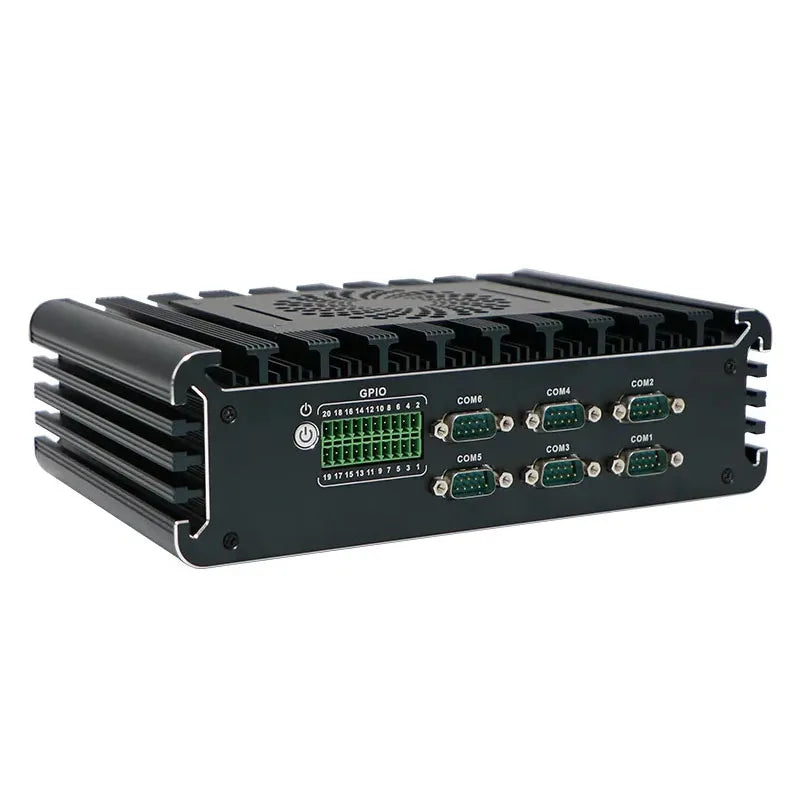

  • 1*16 pins GPIO Phoenix terminal
  • 6*COM ports (COM1&COM2 can be option RS232/RS485)
  • 1*2Pin Phoenix terminal

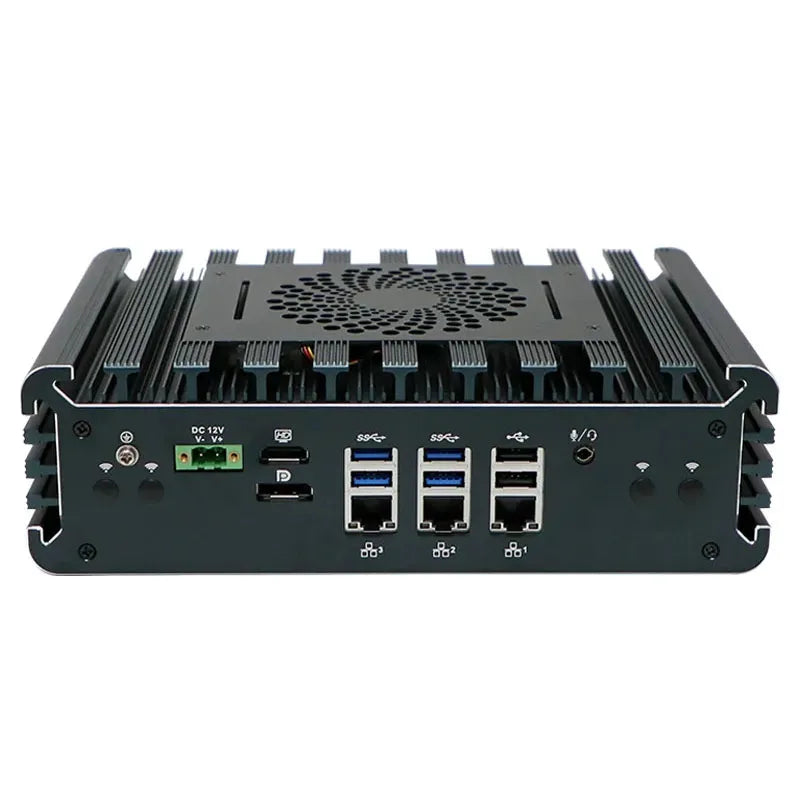

  • 1*HDMI, 1*DP
  • 4*USB3.0, 2*USB2.0
  • 3*Intel I225-v 2.5G LAN
  • 1*audio&Mic
• Network: 3*Intel i226-V 2.5G LAN
• Power Supply: DC 12V
• Certificates: CE, CCC, FCC Class A, ROHS
• Application: Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision, etc.

• Color: Black (Color can be customized)
• Material: High quality all aluminium alloy with hard anodized surface, Fan intelligent heat dissipation
• Size: 230 * 152 * 68 mm
• Weight: 2.4KG

• Work Temp: 0¡æ ¡« +50¡æ (Commercial HDD), -20¡æ ¡« +60¡æ (Industrial SSD), Surface air flow
• Work Humidity: 5% ¡« 95% non-condensing
