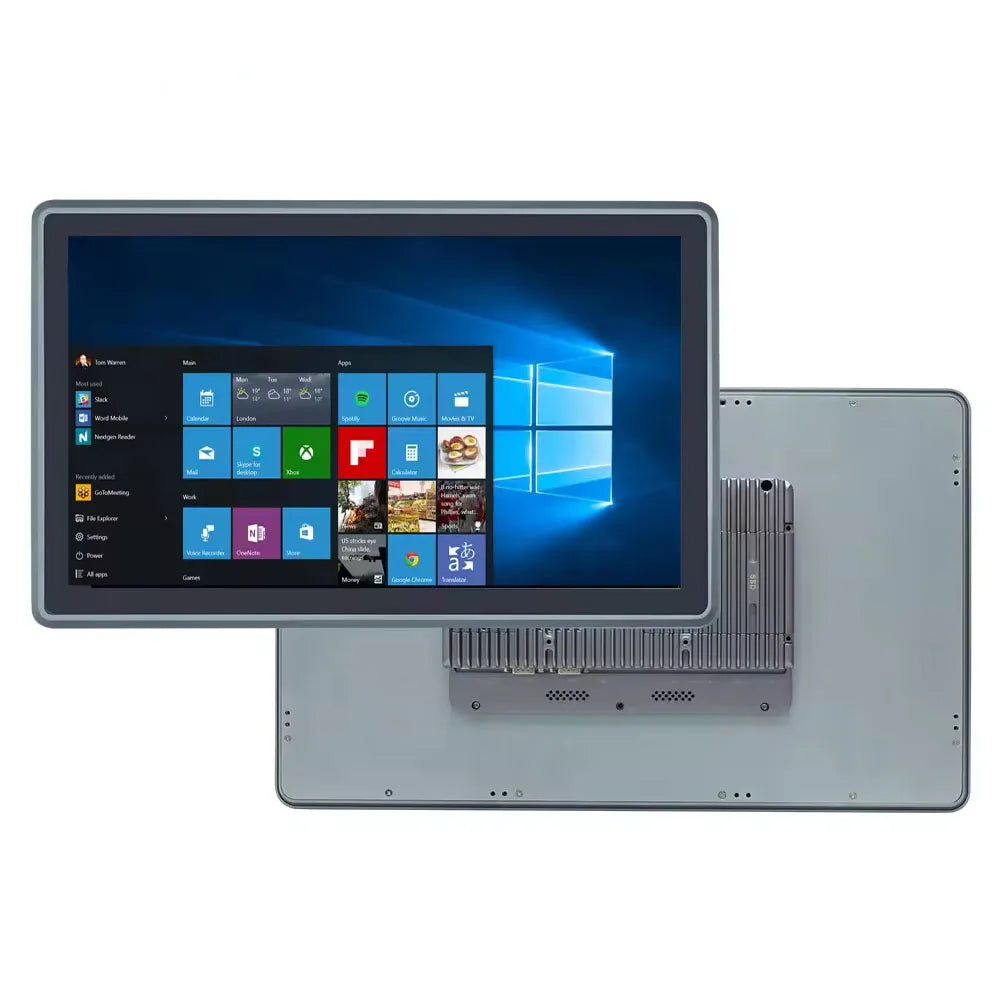

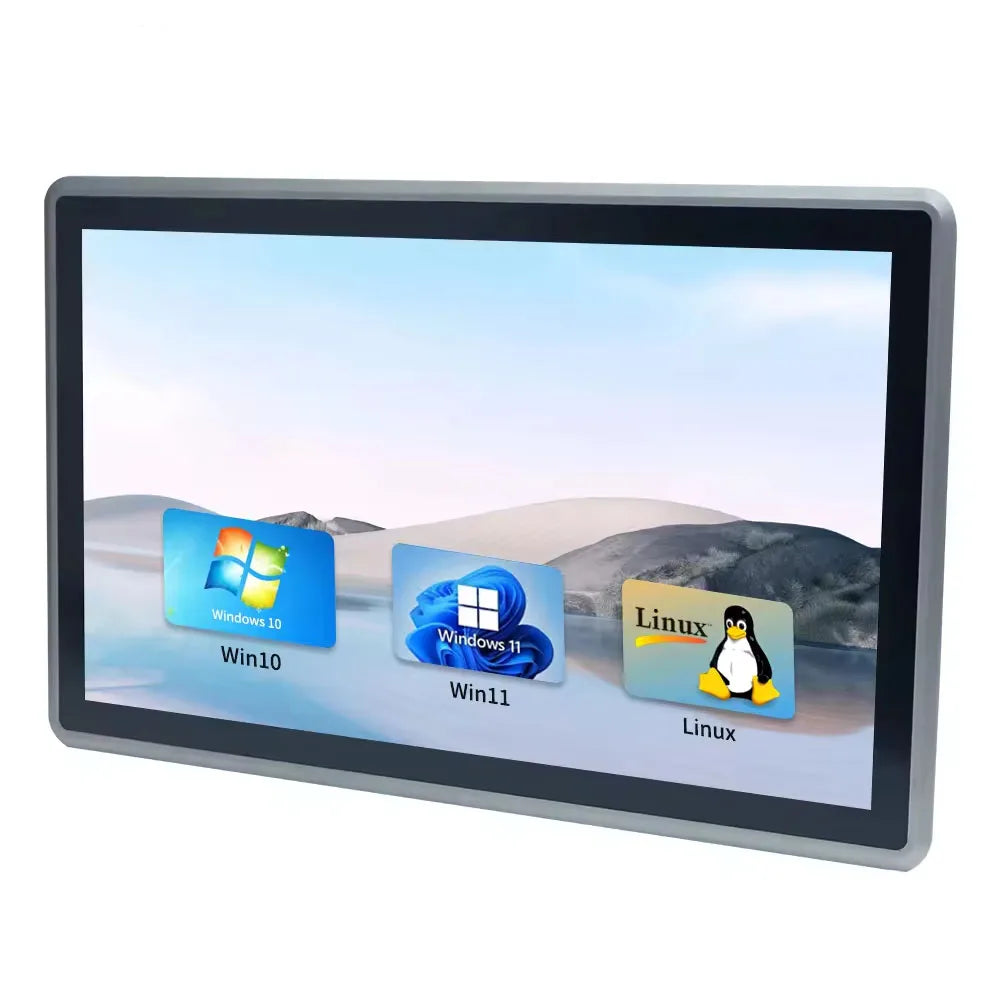

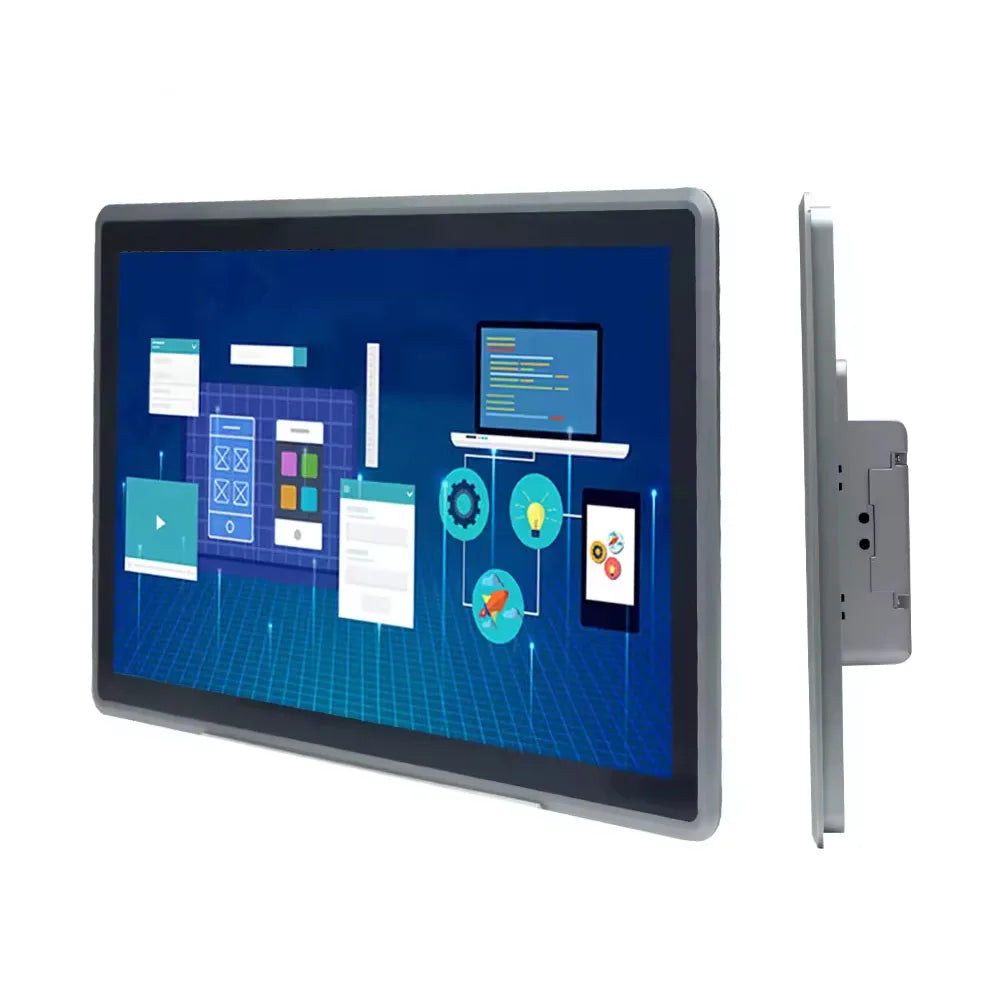

Partaker A22 Industrial Panel PC

• Model: Partaker A22 Industrial Panel PC
• Color: Gray (color can be customized)
• Material: Aluminum alloy
• Processor:
  • Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache)
  • Intel Core i5-8260U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache)
  • Intel Core i7-8565U (Quad core eight threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache)
• Memory: 1*DDR4 2400/2666 SODIMM memory slot, Max. 32GB
• BIOS: AMI EFI BIOS
• Chipset: Intel UHD Graphics
• Display port: 1*HD, 1*LVDS (Synchronous, asynchronous display is supported)
• I/O:
  • 1*HD
  • 2*COM (COM1,2 support RS232/422/485, 6*COM is optional)
  • 1*power button
  • 1*2Pin Supply Phoenix terminal
  • 1*Audio & Speaker
  • 4*USB3.0
  • 2*Intel 1000M Lan (4*Lan optional)
• Expansion Slot: 1*Mini PCIE slot (support WIFI/BT/3G/4G, with SIM card slot)
• Expansion Port: Standard version doesn¡¯t include these ports: GPIO (8 in & 8 out), 2*Lan ports, 4*COM, 2*USB2.0
• LCD:
  • Screen size: 21.5 inch TFT-LCD
  • Screen brightness: 250 cd/m²
  • Visual Angle: full angle
  • Screen scale: 16:9
  • Resolution: 1920 * 1080

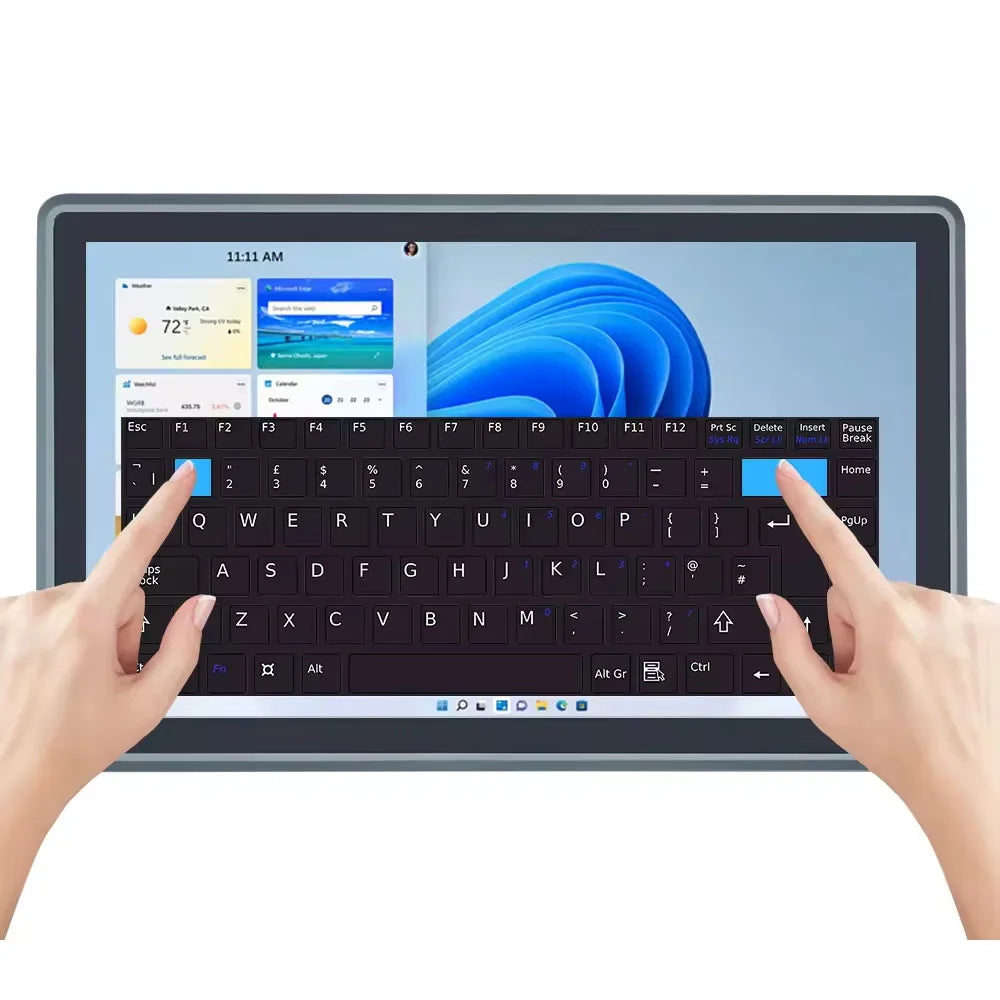

  • Touch screen: Resistive high-sensitivity touch screen with a lifespan of more than 50 million times; (capacitive touch screen is optional)
• Speaker: Two 8-ohm 2-watt speakers
• Storage:
  • 1*M.2 2280 slot (SATA signal)
  • 1*2.5 inch SSD/HDD
• Power Supply: DC 9¡«36V wide-voltage, Support positive and negative electrode protection
• Other Functions: Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
• Work Temp:
  • 0¡æ - +50¡æ (Commercial HDD)
  • -20¡æ to - +60¡æ (Industrial SSD)
  • Surface air flow
• Work Humidity: 5% ¡« 95% non-condensing
• Dimension: 540 332 60 mm
• Embedded Dimension: 528 * 320 mm
• Weight: 6.8 kg
• Application: Industrial automation, medical, logistics, transportation, warehousing, machine vision etc.
